In induction heating technology, frequency is one of the most critical parameters determining heating efficiency and process success. As a non-contact heating method based on electromagnetic induction, induction heating relies on frequency to directly influence energy transfer efficiency, heating performance, and final product quality.
Induction heating works by generating an alternating magnetic field through alternating current, inducing eddy currents within conductive workpieces and converting electrical energy into heat. Frequency plays a decisive role in regulating this entire process. Whether in industrial melting, heat treatment, or precision applications such as localized heating and brazing, frequency matching is closely linked to production efficiency, operating cost, and product qualification rate. Therefore, a deep understanding of induction heating frequency has significant engineering and practical value.
The impact of frequency on heating efficiency is mainly reflected in energy coupling and conversion efficiency. When the frequency is properly matched, efficient coupling between the induction coil and the workpiece can be achieved, maximizing the conversion of electrical energy into heat and minimizing energy loss. Conversely, frequency mismatch leads to poor coupling efficiency, reduced heating performance, or even failure to heat effectively.
From a process quality perspective, frequency determines how heat is distributed within the workpiece, directly affecting key indicators such as heat treatment results, melting purity, and welding strength. For example, surface hardening of precision components requires high frequency to ensure sufficient surface hardness without affecting the core, while deep heating of large steel billets for forging requires low frequency to achieve uniform internal heating. This clearly shows that accurate frequency selection is a core guarantee of process quality.
Induction heating frequency refers to the frequency of the alternating current output by the induction power supply, measured in hertz (Hz). Common frequency ranges include power frequency (50/60 Hz), medium frequency (kHz range), and high frequency (MHz range).
Essentially, frequency determines the rate of change of the alternating magnetic field generated by the induction coil. A higher frequency means a faster-changing magnetic field, resulting in higher-frequency and higher-density eddy currents within the workpiece. Induction heating frequency must be selected based on material properties, workpiece dimensions, and heating requirements. Its core function is to precisely control eddy current distribution and heat generation by adjusting the magnetic field variation rate.
Induction heating is fundamentally based on the combination of electromagnetic induction and Joule heating, with frequency serving as the key link between the two.
First, alternating current flowing through the induction coil generates an alternating magnetic field with the same frequency. When a conductive workpiece is placed within this field, closed-loop eddy currents are induced according to electromagnetic induction laws. These eddy currents have the same frequency as the magnetic field.
Second, as the eddy currents flow through the electrical resistance of the workpiece, heat is generated according to Joule’s law (Q = I²Rt), converting electrical energy into thermal energy.
Frequency affects heat generation in two main ways:
In short, frequency indirectly determines where, how fast, and how evenly heat is generated by controlling magnetic field variation.
The skin effect is the core physical mechanism through which frequency influences heating performance. It refers to the phenomenon where eddy currents concentrate toward the surface of a workpiece as frequency increases, with current density decreasing toward the center.
Penetration depth (skin depth) is a key indicator, defined as the depth at which current density decreases to 1/e (approximately 36.8%) of its surface value. Penetration depth is inversely related to frequency and can be expressed as:
δ = √(ρ / (πμf))
where δ is penetration depth, ρ is electrical resistivity, μ is magnetic permeability, and f is frequency.
As frequency increases, penetration depth decreases, concentrating heat near the surface. Lower frequency allows deeper penetration and internal heating. This relationship directly determines the heating range and application suitability.
Heating speed is influenced by eddy current intensity and heat generation rate. At the same power input, higher frequency concentrates eddy currents near the surface, producing faster surface heating, while internal heating relies on thermal conduction. Lower frequency distributes eddy currents more evenly, resulting in slower but more uniform heating.
Temperature uniformity is closely related to penetration depth. For small or thin-walled workpieces, an appropriate high frequency can achieve uniform heating. For large or thick workpieces, low frequency is necessary to ensure sufficient heat penetration and avoid surface overheating with insufficient internal temperature.
Excessively high frequency may cause localized overheating and large temperature gradients, while excessively low frequency leads to slow heating and increased risks of oxidation and decarburization. Both negatively affect temperature control and product quality.
Low-frequency induction heating, ranging from 50/60 Hz to 1 kHz, offers deep penetration and uniform internal heating, making it suitable for large and heavy workpieces. Typical applications include large steel billet forging, preheating of thick pipes and vessels for welding, and overall heat treatment of thick components.
Low-frequency systems have simpler structures and lower equipment costs, making them ideal for applications where heating speed is not critical but uniformity is essential.

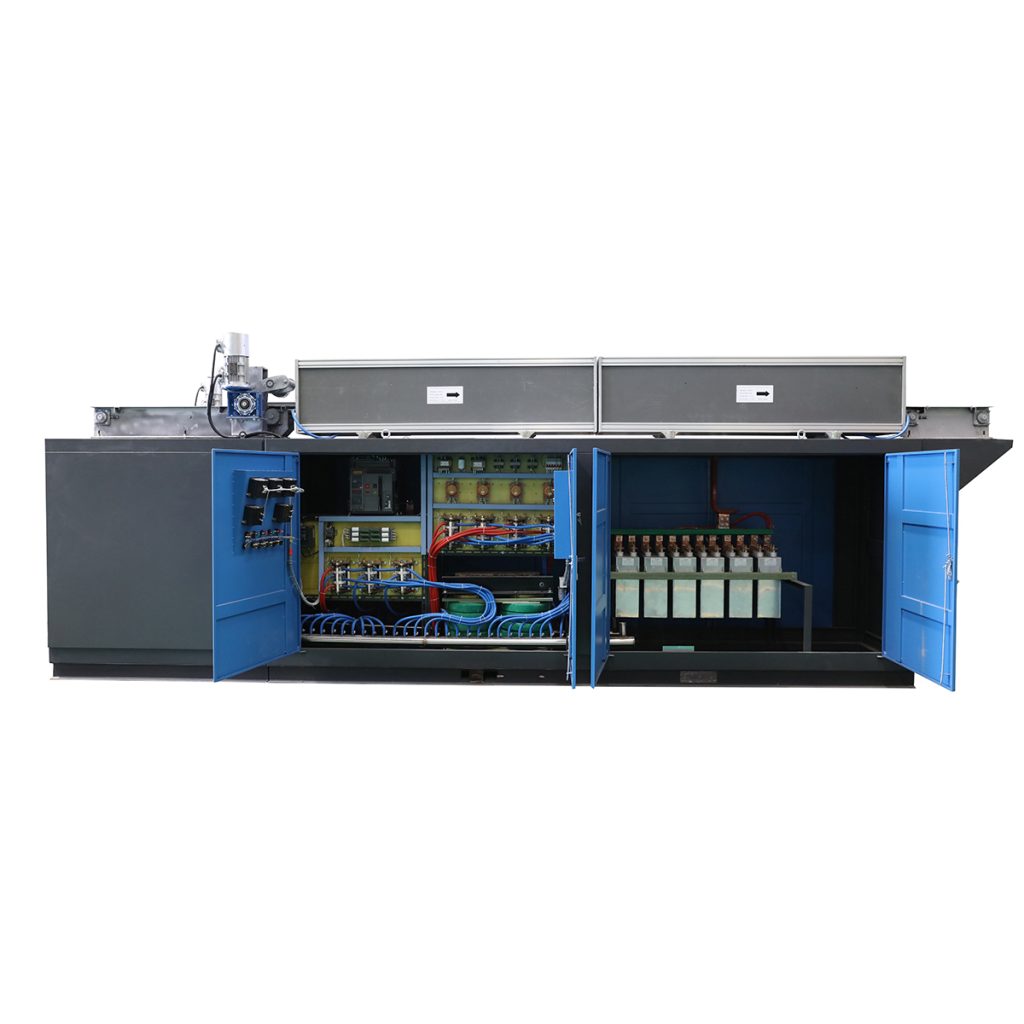

Medium-frequency induction heating is one of the most widely used ranges in industrial applications. It balances penetration depth and heating efficiency, making it suitable for non-ferrous metal melting and general industrial heating.
Aluminum and copper melting commonly use medium frequency to ensure sufficient penetration while avoiding surface overheating and oxidation. Medium frequency is also widely applied in shaft and gear heat treatment, welding preheating, and thermal assembly operations.
High-frequency induction heating features strong skin effect and extremely shallow penetration depth, typically ranging from 0.1 mm to several millimeters. Heat is concentrated on the surface, making it ideal for surface hardening, tempering, brazing, and precision heating.
High-frequency induction heating is widely used in automotive components such as crankshafts and camshafts, tool edge hardening, electronic component soldering, and micro-part heating. Its fast heating speed reduces oxidation and improves production efficiency.
Material properties such as electrical resistivity and magnetic permeability directly influence frequency selection. Low-resistivity materials like aluminum and copper require higher frequency to generate sufficient eddy currents, while higher-resistivity materials like carbon steel can be efficiently heated at lower frequencies.
Workpiece size is inversely related to frequency selection. Large and thick workpieces require low frequency to ensure deep and uniform heating, while small and thin components require high frequency for rapid and localized heating.
Heating depth requirements directly determine frequency choice:
Production efficiency also affects selection. High-frequency systems are ideal for high-speed production lines, while low- and medium-frequency systems suit slower processes where uniformity and energy efficiency are prioritized.
Induction heating frequency is a core parameter that determines heating efficiency, product quality, and operating cost. Proper frequency selection ensures efficient electromagnetic coupling, optimal energy utilization, uniform heat distribution, and stable process performance. Incorrect frequency selection leads to energy waste, quality defects, and production inefficiency.
Optimizing induction heating frequency provides significant technical and economic benefits. Technically, it enables precise process control, improved product consistency, and broader application coverage. Economically, it reduces energy consumption, shortens heating cycles, lowers maintenance costs, and enhances overall competitiveness.
In the context of intelligent manufacturing, dynamic frequency optimization and adaptive control based on real-time temperature and material conditions are becoming key drivers of efficient, green, and precise industrial induction heating systems.
