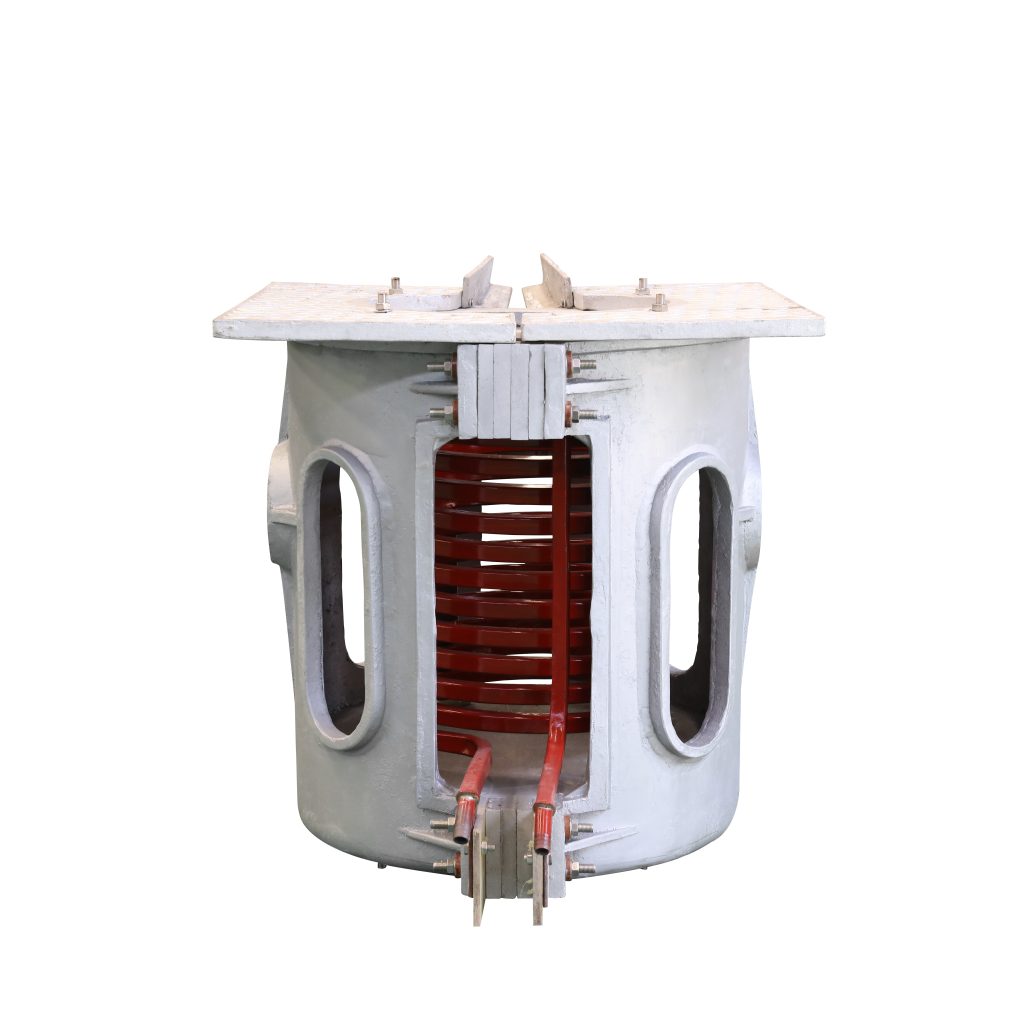

In modern metal processing industries such as steel mills and foundries, melting equipment plays a decisive role in production efficiency, energy consumption, and product quality. As production scales increase and labor costs rise, enterprises are placing higher demands on melting speed, operational stability, safety protection, and automation level.
The Aluminum Shell Medium-Frequency Melting Furnace is developed to meet these practical production requirements. It is mainly used for the melting and reprocessing of steel, iron, and other metallic materials, and is widely applied in:
With a capacity range from 0.1T to 20T and a melting time of 40–60 minutes per furnace, the system provides a flexible and efficient solution for different production scales.
Medium-frequency melting furnaces work by converting industrial power into medium-frequency electrical energy. The medium-frequency current flows through the induction coil and generates a strong alternating magnetic field. This magnetic field induces eddy currents inside the metal charge, causing rapid internal heating due to electrical resistance.
At the same time, electromagnetic stirring occurs naturally during the melting process, which brings several important benefits:
These characteristics make medium-frequency furnaces especially suitable for applications that require fast melting, high efficiency, and consistent metallurgical quality.
The Aluminum Shell Medium-Frequency Melting Furnace is not a single piece of equipment, but a complete and coordinated melting system. It mainly consists of:
Each subsystem is designed to work together efficiently, ensuring stable operation, fast startup, and flexible production scheduling.
One of the core strengths of this furnace series is its wide model coverage, allowing users to select equipment based on actual production needs.
| Item | Specification |
|---|---|
| Capacity range | 0.1T – 20T |
| Melting time | 40–60 minutes per furnace |
| Operation mode | Continuous or intermittent |
| Applicable metals | Steel, iron, and other metals |
This flexibility allows small workshops and large-scale industrial users to adopt the same mature technology platform while optimizing investment cost and production efficiency.
To ensure long-term safe operation, the furnace is equipped with a self-test and real-time monitoring system. Key operating parameters are continuously detected during operation, including:
All fault information is monitored in real time and displayed clearly, allowing operators to identify abnormal conditions at an early stage. This greatly reduces the risk of equipment damage and unplanned shutdowns, especially in continuous production environments.
Safety is a critical concern in melting operations. The Aluminum Shell Medium-Frequency Melting Furnace integrates multiple safety and control functions into a unified system.
The PLC control system enables logical interlocking, standardized operation procedures, and stable process control. The overall design is rational and user-oriented, allowing operators to quickly master the system and reducing dependence on manual experience.
The electrical system adopts a modular cabinet structure, which significantly improves maintainability and system clarity.
Key design highlights include:
This design not only simplifies daily inspection and maintenance but also improves long-term operational reliability.
Reliable cooling is essential for the stable operation of medium-frequency melting furnaces. The equipment adopts high-standard materials and components in the cooling system:
These materials offer excellent corrosion resistance and durability, reducing leakage risks and extending service life under long-term high-temperature operation.

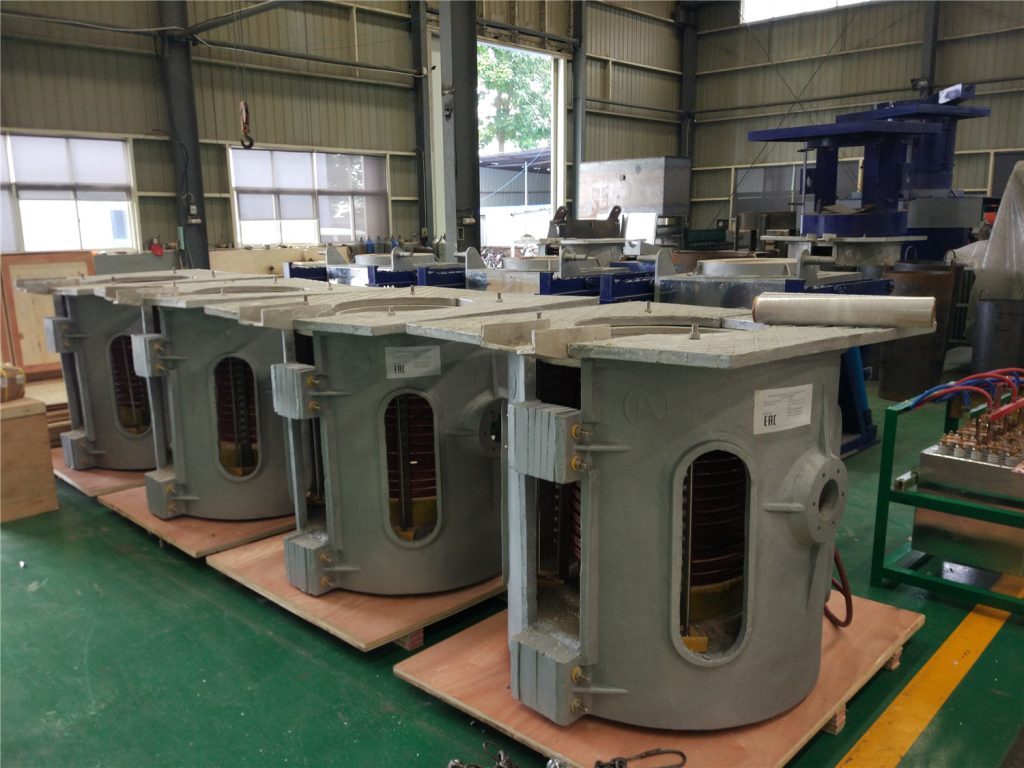

To meet different capacity requirements and cost considerations, the furnace body structure is optimized according to tonnage.
| Capacity Range | Furnace Body Material | Tilting Method | Characteristics |
|---|---|---|---|
| Below 5 tons | Cast aluminum alloy shell | Reducer-driven tilting | Low cost, simple structure, easy maintenance |
| Over 1 ton | Steel shell (carbon steel welded) | Hydraulic tilting | High efficiency, energy saving, safe and stable |
For furnaces over 1 ton, a steel shell structure is adopted. The shell is welded from high-quality carbon steel, ensuring mechanical strength and long-term stability.
Additional design features include:
The magnetic yoke shielding layer reduces magnetic leakage, improves electrical efficiency, and enhances operational safety, making the furnace more energy-efficient and stable during continuous operation.
The furnace is designed to operate 24 hours a day, meeting the demands of modern high-efficiency production lines.
Through optimized electrical design, intelligent control, and reliable cooling, the system helps users achieve:
These advantages directly translate into improved economic performance for the user.
From a user’s perspective, the Aluminum Shell Medium-Frequency Melting Furnace provides clear and practical value:
Rather than focusing on a single parameter, the equipment delivers overall system reliability and controllable operating costs, which are critical factors in real industrial production.
The Aluminum Shell Medium-Frequency Melting Furnace combines mature medium-frequency technology with intelligent control systems, standardized electrical design, and durable structural materials. From small-capacity aluminum shell furnaces to large steel shell configurations, the system offers a reliable and flexible melting solution for modern metal processing enterprises.
By improving efficiency, enhancing safety, and reducing long-term operating costs, this furnace supports users in achieving stable production and sustainable development.
