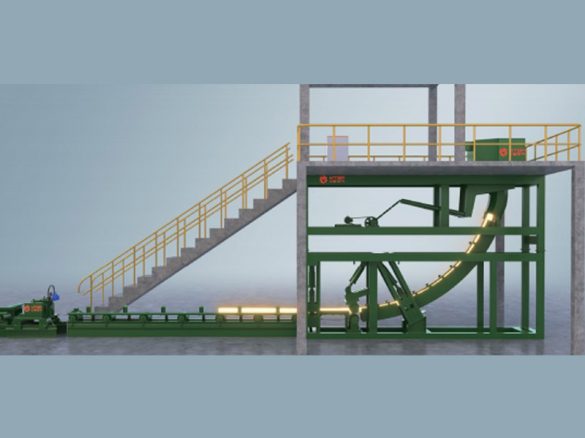

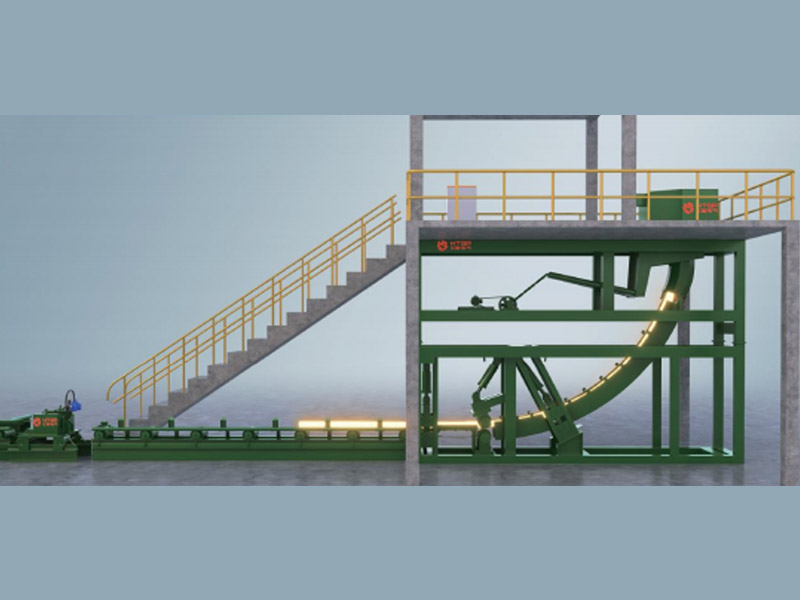

The main products are R2.5M, R3.5M, R5.25M, R6M, and R8M, continuous casting machine with matching radius. It is composed
of large steel ladle, middle steel ladle, crystallizer, vibration device, arc section, primary water cooling, secondary water cooling, dummy bar, billet pulling device, multi-point straightening and cutting device etc. It can produce 60mm, 70mm, 80mm, 90mm, 100mm, 120mm, 180mm, 220mm square billets in single flow ormulti-flows. Specially, R2.5M and R3.5M are all-in type continuous casting machine. R2.5M can produce 60mm,70mm and 80mm square billets while R3.5M can produce 70mm, 80mm, 90mm, 100mm and 120mm square billets.

1.  Small occupation area, and the worktable can be large or small according to the diferent installation methods.
2. Various casting methods, such as crane casting, rail car casting, electric furnace direct casting etc.
3. Small continuous casting machines have low requirements for the height of the workshop; if the height is not enough, the foundation can be dug down l meter.
4. As the all-in type structure, it can be installed by an crane to shorten the installation time. It can start the work when the water and electricity is connected.
5.  lt’ s easy to realize the working of continuous casting and rolling only by raising 300℃ for the billets when using 25 type or 30 type rolling mill.
6. Low requirements for the weight of molten steel pouring, ranging from 100kg to a few tons each time. lt can be completed within 10 minutes from startup to pouring.The operator can work in skillful by a short-term training.
7. The operator can work in skillful by a short-term training.
8. Low requirements for cooling water, no requirements for water quality, acidity, hardness, or minerals, and any water quality can be used.
9.  It is workable on low carbon steel, medium carton steel, high carbon steel, alloy steel, stainless steel etc
10. Simply operation and reliable running, speed adjustable.
11. Simplest design structure which can reduce the maintenance and ensure the normal running of the machine
